Specifications

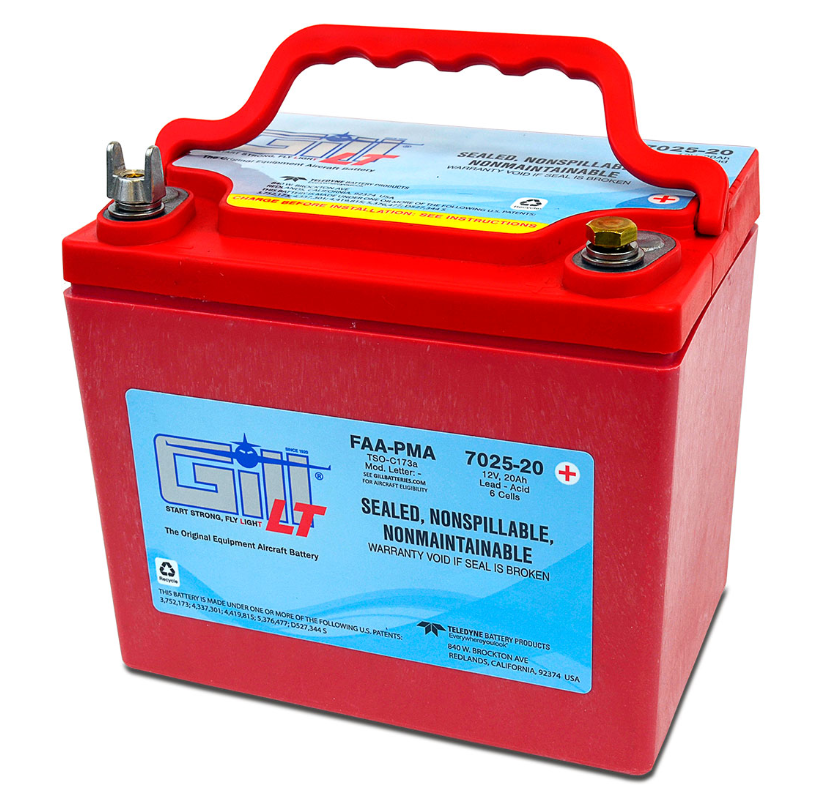

Model 7025-20
Nominal Voltage, V 12
One Hour Capacity, C1, Ah 20
30 Minute Emergency Rate, C/2, A 32
Weight, Lb. Maximum 22.60
Power
Performance 23°C (75°F) -18°C (0° F) -30°C (-22°F)
Ipp, A 1125 725 500
Ipr, A 850 550 400
$510.40
Specifications
Model 7025-20
Nominal Voltage, V 12
One Hour Capacity, C1, Ah 20
30 Minute Emergency Rate, C/2, A 32
Weight, Lb. Maximum 22.60
Power
Performance 23°C (75°F) -18°C (0° F) -30°C (-22°F)
Ipp, A 1125 725 500
Ipr, A 850 550 400
MAKE MODEL
Alexandria 17-30, 17-30A, 17-31, 17-31A, 17-31TC, 17-31ATC
American 7ACA, 7EGA, 7GCBC
Champion
Beechcraft 19A, B19, 23, A23, A23A, B23, C23, A24, A24R,
B24R, C24R, E33, E33A, E33C, F33, G33,
35-33, 35-A33, 35-B33, 35-C33, 35-C33A,
D-55, D55A, E55, E55A, 58, 58A, 58P, 58TC,
G58, 77, 95, B95, B95A, D95A, E95, 95-55,
95-A55, 95-B55, 95-C55, 95-C55A
Cessna 120, 140, 150, 150A, 150B, 150C, 150D, 150E,
150F, 150G, 150H, 150J, 150K, 150L, 150M,
A150K, A150L, A150M, 170, 172, 172B, 172C,
172D, 172E, 172F (USAF T-41A), 172G,
172H (USAF T-41A), 172I, 172K, 172L, 172M,
172N, F172D, F172E, F172F, F172G, F172H,
F172K, F172L, F172M, F172N, 175, 175B, 175C,
P172D, 177, 177A, 177B, 188, 188A, 188B, T188C,
310, 310B, 310C, 310D, 310F, 310G, 310H,
E310H, 310I, 310J, 310J-1, E310J, 310K, 310P,
310Q, 320, 340
Commander 112, 112TC, 112B, 112TCA
Piper PA-11, PA-22-108, PA-22-135, PA-22-150,
PA-22-160, PA-23-235, PA-23-250,
PA-28-140, PA-28-150, PA-28-151, PA-28-160,
PA-28-161, PA-28-180, PA-28-181, PA-28-201T,
PA-28-235, PA-28-236, PA-28R-180,
PA-28R-200, PA-28RT-201, PA-28RT-201T,
PA-32-260, PA-32-300, PA-32R-300,
PA-32RT-300, PA-32RT-300T, PA-36-285,
PA-36-300, PA-36-375, PA-38-112
Socata GA-7
R-22, R-22 ALPHA, R-22 BETA,
R-22 MARINER, R-44, R-44 II
True Flight AA-1, AA-1A, AA-1B, AA-1C, AA-5, AA-5A, AA-5B
